Raycus Fiber Lazerler

Kod	Aciklama	Ozellikler

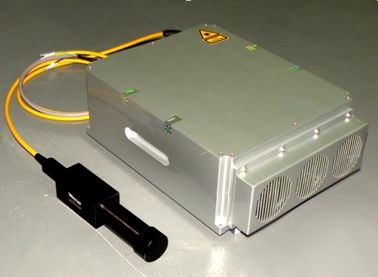

B0202-RS0001	Raycus 20W Ekonomik Darbeli Lazer RFL-P20QE	Raycus 20W Darbeli Lazers	Ekonomik
B0202-RS0002	Raycus 50W darbeli fiber lazer RFL-P50Q	Wavelength(nm) 1064 Polarization Random Nominal average output power (W) 50 Single pulse energy (mJ) 1 Beam quality(M2) <1.8 Beam Diameter(mm) 7.5±1 Pulse duration(ns) 130~200 Pulse repetition rate(kHz) 50~100 Output Power Tunability(%) 10-100 Output Fiber Cable length(m) 2.0 Working voltage(VDC) 24±1 Power consumption(20?)(W) 400 Cooling Forced Air Cooled Dimension W×D×H(mm) 396×360×125 Operating temperature 0?~35? Store temperature -10?~60? humidity 30%~85% Cable Length 2m (isteğe bağlı değiştirilebilir)	50W darbeli fiber lazer
B0202-RS0003	100W Darbeli Fiber Lazer ESN-R RFL-P100Q	Wavelength(nm) 1064 Polarization Random Nominal average output power (W) ?50 Single pulse energy (mJ) 1 Beam quality(M2) <1.8 Beam Diameter(mm) 6.5±1 Pulse duration(ns) 50~130 Pulse repetition rate(kHz) 20~200 Output Power Tunability(%) 10-100 Output Fiber Cable length(m) 2.0 Working voltage(VDC) 24±1 Power consumption(20?)(W) 450 Cooling Forced Air Cooled Dimension W×D×H(mm) 396×360×125 Operating temperature 0?~35? Store temperature -10?~60? humidity 30%~85% Cable Length 2m (isteğe bağlı değiştirilebilir)	100W Darbeli Fiber Lazer
B0202-RS0004	20W Darbeli Fiber Lazer RFL-P20Q	AWavelength(nm) 1064 Polarization Random Nominal average output power (W) 20 Beam quality(M2) <1.8 Beam Diameter(mm) 7.5±1 Pulse duration(ns) 90~130 Pulse repetition rate(kHz) 50~100 Output Power Tunability(%) 10-100 Working voltage(VDC) 24±1 Power consumption(20?)(W) 170 Cooling Forced Air Cooled Dimension W×D×H(mm) 346×260×120 Operating temperature 0?~35? Store temperature -10?~60? humidity 30%~85% Cable Length 2m (isteğe bağlı değiştirilebilir)	20W Darbeli Lazer
B0202-RS0005	4kW CW Fiber Lazer RFL-C4000	Çoklu Mod Çıkış Gücü: 4000W Dalga Boyu: 1080 +/-5 Max. Modulasyon: 20KHz 380VAC Trefaze Giriş Su Soğutmalı Kırmızı Pilot Işıklı 20m Fiber Kablo QBH Konnektör	4kW CW Fiber Lazer
B0202-RS0006	3,3kW CW Fber Lazer RFL-C3300	Çoklu Mod Çıkış Gücü: 3300W Dalga Boyu: 1080 +/-5 Max. Modulasyon: 20KHz 380VAC Trefaze Giriş Su Soğutmalı Kırmızı Pilot Işıklı 20m Fiber Kablo QBH Konnektör	3,3kW CW Fber Lazer

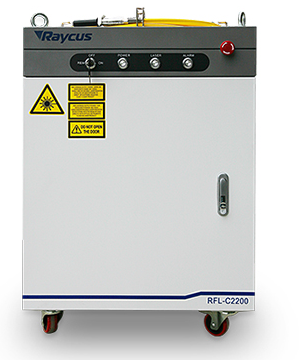

B0202-RS0007	2,2kW CW Fiber Lazer RFL-C2200	Çoklu Mod Çıkış Gücü: 2200W Dalga Boyu: 1080 +/-5 Max. Modulasyon: 20KHz 380VAC Trefaze Giriş Su Soğutmalı Kırmızı Pilot Işıklı 20m Fiber Kablo QBH Konnektör	2,2kW CW Fiber Lazer
B0202-RS0008	1500W CW Fiber Lazer RFL-C1500	Çoklu Mod Çıkış Gücü: 1500W Dalga Boyu: 1080 +/-5 Max. Modulasyon: 20KHz 380VAC Trefaze Giriş Su Soğutmalı Kırmızı Pilot Işıklı 20m Fiber Kablo QBH Konnektör	1500W CW Fiber Lazer

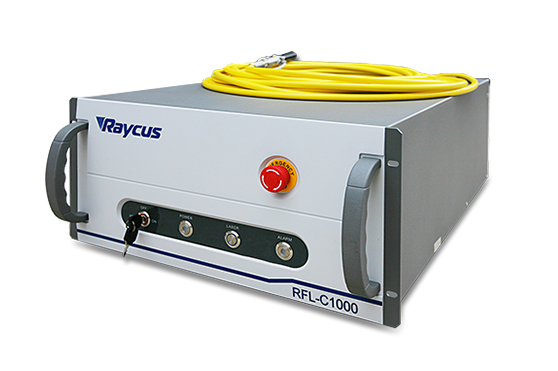

B0202-RS0009	1000W CW Fiber Lazer RFL-C 1000	Tek Mod Çıkış Gücü: 1000W Dalga Boyu: 1080 +/-5 Max. Modulasyon: 20KHz 380VAC Trefaze Giriş Su Soğutmalı Kırmızı Pilot Işıklı	1000W Tek Mod CW Fiber Lazer
B0202-RS0010	750W CW Fiber Lazer RFL-C 750	Tek Mod Çıkış Gücü: 750W Dalga Boyu: 1080 +/-5 Max. Modulasyon: 20KHz 380VAC Trefaze Giriş Su Soğutmalı Kırmızı Pilot Işıklı	750W Tek Mod CW Fiber Lazer
B0202-RS0011	500W CW Fiber Lazer RFL-C 750	Tek Mod Çıkış Gücü: 500W Dalga Boyu: 1080 +/-5 Max. Modulasyon: 20KHz 380VAC Trefaze Giriş Su Soğutmalı Kırmızı Pilot Işıklı	500W Tek Mod CW Fiber Lazer

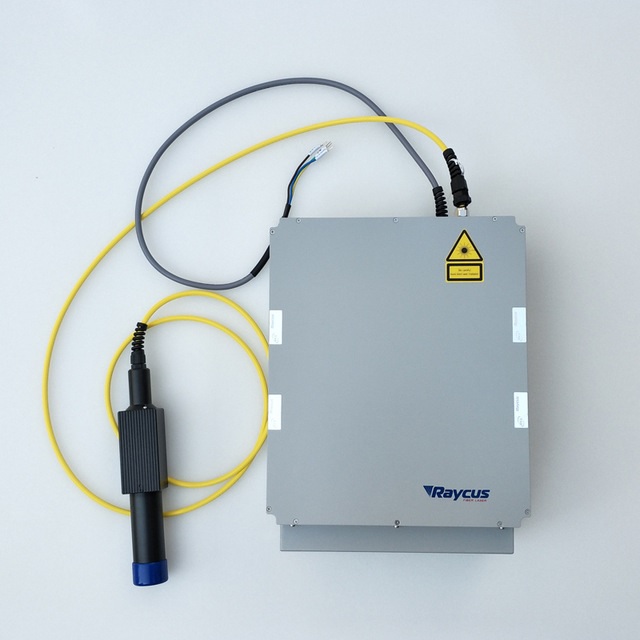

B0202-RS0012	Raycus 30W Darbeli Fiber Lazer	Wavelength(nm) 1064 Polarization Random Nominal average output power (W) 30 Single pulse energy (mJ) 1 Beam quality(M2) <1.5 Beam Diameter(mm) 7±1 Pulse duration(ns) 50~130 Pulse repetition rate(kHz) 90~130 Output Power Tunability(%) 10-100 Working voltage(VDC) 24±1 Power consumption(20?)(W) 240 Cooling Forced Air Cooled Dimension W×D×H(mm) 346×260×120 Operating temperature 0?~35? Store temperature -10?~60? humidity 30%~85% Cable Length 2m (isteğe bağlı değiştirilebilir)	30W Darbeli Fiber Lazer
B0202-RS0013	Raycus 30W Darbeli Fiber Lazer comppact RFL-P30QB	Wavelength(nm) 1064 Polarization Random Nominal average output power (W) 30 Single pulse energy (mJ) 1 Beam quality(M2) <1.5 Beam Diameter(mm) 7±1 Pulse duration(ns) 50~130 Pulse repetition rate(kHz) 90~130 Output Power Tunability(%) 10-100 Working voltage(VDC) 24±1 Power consumption(20?)(W) 240 Cooling Forced Air Cooled Dimension W×D×H(mm) 286×215×94.5 Operating temperature 0?~35? Store temperature -10?~60? humidity 30%~85% Cable Length 2m (isteğe bağlı değiştirilebilir)	Compact ! Dimension W×D×H(mm) 286×215×94.5
B0202-RS0014	Raycus 20W Darbeli Fiber Lazer Compact RFL-P20QB	Wavelength(nm) 1064 Polarization Random Nominal average output power (W) 20 Single pulse energy (mJ) 1 Beam quality(M2) <1.5 Beam Diameter(mm) 7±1 Pulse duration(ns) 50~130 Pulse repetition rate(kHz) 90~130 Output Power Tunability(%) 10-100 Working voltage(VDC) 24±1 Power consumption(20?)(W) 240 Cooling Forced Air Cooled Dimension W×D×H(mm) 286×215×94.5 Operating temperature 0?~35? Store temperature -10?~60? humidity 30%~85% Cable Length 2m (isteğe bağlı değiştirilebilir)	Compact ! Dimension W×D×H(mm) 286×215×94.5
B0202-RS0015	Raycus 50W darbeli fiber lazer. Kompakt RFL-P50QB	Wavelength(nm) 1064 Polarization Random Nominal average output power (W) 30 Single pulse energy (mJ) 1 Beam quality(M2) <1.8 Beam Diameter(mm) 7.5±1 Pulse duration(ns) 90~150 Pulse repetition rate(kHz) 50~100 Output Power Tunability(%) 10-100 Output Fiber Cable length(m) 2.0 Working voltage(VDC) 24±1 Power consumption(20?)(W) 400 Cooling Forced Air Cooled Operating temperature 0?~35? Store temperature -10?~60? humidity 30%~85% Cable Length 2m (isteğe bağlı değiştirilebilir)	Compact !
