Max Fiber Lazerler

Kod	Aciklama	Ozellikler
B0202-MX0001	30W Darbeli Fiber Lazer ESN-M	30~60khz, with inbuilt red beam	30W Darbeli Fiber Lazer
B0202-MX0003	50W Fiber Lazer ESN-M	Central wavelength......nm......1064±4 Polarization....................Random Average output power....W...... 50 Energy per pulse...... mJ...... 0.8~1.0 Beam quality............M2......<2.0 Beam diameter............mm.........6~9 Frenq. tunable range...KHz.........50~80 Operation voltage.......VDC.......24 Power consumption.... W(20)...200 Isolator dim/weight....W46*H46*L310mm 1.65kg Laser dimension/weight..W275*H120*L347mm &12kg Fiber length.................m........1.9,2.5,3.0 Operate temperature.............0~40? Operating humidity................10~95 Stockpile temperature..........-10~60?	50W Darbeli Fiber Lazer
B0202-MX0004	100W Fiber Lazer ESN-M	1. 100W, Q-switched pulse fiber laser source, with internal red beam. 2. Frequency: 20-200KHz 3. Fiber Cable Length: 5 meter	100W Darbeli Fiber Lazer
B0202-MX0005	20W Fiber Lazer ESN-M, 1mJ	1.20W, Q-switched pulse fiber laser source, with internal red beam. 2. Frequency: 30-60KHz 3. Fiber Cable Length: 1.9 meter	20W Darbeli Fiber Lazer

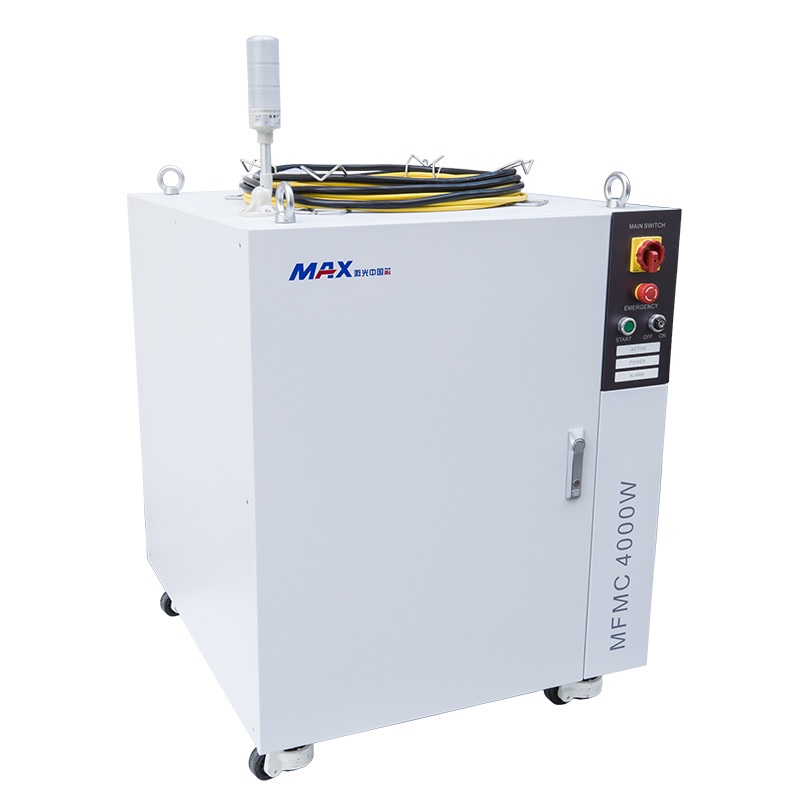

B0202-MX0006	2kW Multimode Fiber Laser	1.2000W, single mode CW fiber laser source, with internal red beam. 2. Fiber Cable Length: 12 meter	2kW Multimode Fiber Laser
B0202-MX0007	500W Single Mode Fiber Lazer	1.500W, single mode CW fiber laser source, with internal red beam. 2. Fiber Cable Length: 12 meter 3. Feeding fiber core size: 25 um (20/30/50 optional)	500W Single Mode Fiber Lazer

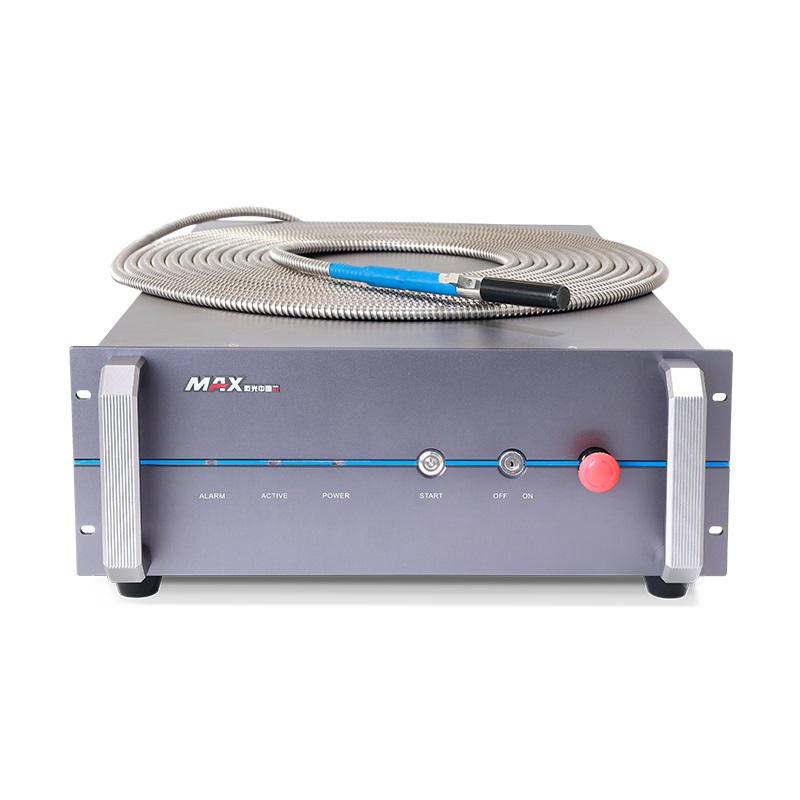

B0202-MX0008	700W single mode CW fiber lazer	700W Çıkış Gücü 1080nm dalgaboyu 20m Fiber Kablo Standart QBH konnektör Su soğutmalı	700W single mode CW fiber lazer
B0202-MX0009	800W single mode CW fiber lazer	800W Çıkış Gücü 1080nm dalgaboyu 20m Fiber Kablo Standart QBH konnektör Su soğutmalı	800W single mode CW fiber lazer
B0202-MX0010	1000W single mode CW fiber lazer	1000W Çıkış Gücü 1080nm dalgaboyu 20m Fiber Kablo Standart QBH konnektör Su soğutmalı	1000W single mode CW fiber lazer
B0202-MX0011	1500W single mode CW fiber lazer	1500W Çıkış Gücü 1080nm dalgaboyu 20m Fiber Kablo Standart QBH konnektör Su soğutmalı	1500W single mode CW fiber lazer

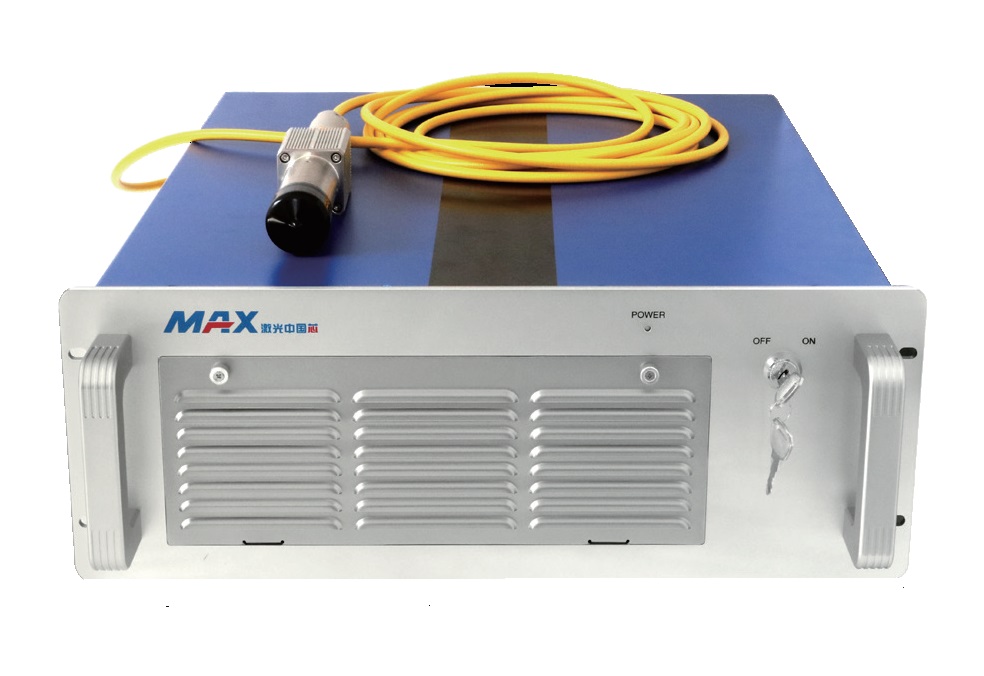

B0202-MX0013	MFP-200 (20~230Khz, with inbuilt red beam, 8mj)	200W Çıkış Gücü 20-230kHz Darbe Frekansı 1064nm Dalga Boyu 5m Fiber Kablo Yüksek Enerji (1.5-8.0mJ)	Yüksek Güç!
